New Crushing Components
JW Bell crushers are designed to provide superior quality and performance, delivering reliable crushing power for your most demanding materials.
Find the right solution for your quarry below.
Cone Crushers
MVP380X
Cone Crusher
MVPX cone crushers simply pulverize everything that stands in the way of success. Inside and out, the advanced engineering of the MVPX sets industry benchmarks, featuring a patented Rollercone® roller bearing design and the hydropneumatic tramp iron relief system that revolutionized the industry. The complete MVPX line includes four different models in stationary or portable configurations, from 200 to 500 horsepower, processing up to 800 TPH and capable of handling sand and gravel, shot rock and recycled materials. Each machine offers you an array of competitive advantages—from improved product quality to high throughput capacities to low operational costs. Cedarapids MVPXs—the leading force in compression crushers.
Specifications:
| Weight | Head Diameter | CSS Range | Capacity | Motor Size |
|---|---|---|---|---|
| 46,000 lbs / 20,800 kg | 48″ / 1219 mm | 3/8″-2″ / 10-51 mm | 170-560 tph / 155-507 mtph | 300 hp / 225 kW |
Downloads:
MVP450X
Cone Crusher
MVPX cone crushers simply pulverize everything that stands in the way of success. Inside and out, the advanced engineering of the MVPX sets industry benchmarks, featuring a patented Rollercone® roller bearing design and the hydropneumatic tramp iron relief system that revolutionized the industry. The complete MVPX line includes four different models in stationary or portable configurations, from 200 to 500 horsepower, processing up to 800 TPH and capable of handling sand and gravel, shot rock and recycled materials. Each machine offers you an array of competitive advantages—from improved product quality to high throughput capacities to low operational costs. Cedarapids MVPXs—the leading force in compression crushers.
Specifications:
| Weight | Head Diameter | CSS Range | Capacity | Motor Size |
|---|---|---|---|---|
| 52,500 lbs / 23,800 kg | 54″ / 1372 mm | 3/8″-2″ / 10-51 mm | 200-645 tph / 182-585 mtph | 400 hp / 300 kW |
Downloads:
LC300 Portable Cone Crusher Plant
The Lippmann LC300 Cone Crusher has established itself as a proven 44” cone with a 300Hp motor. Offering high material capacity and throughput, large stockpile capacity, and customer-focused features. The LC300 cone plant features a swinging feed conveyor and an adjustable rear discharge conveyor for ease of plant operation. These on-plant conveyors will also allow you the ability, with the right screen, to arrange the plant to be a closed-circuit application without the need for off plant conveyors.
300 HP 1200 RPM
Bushing type cone with superior speed throw and cavity design
Standard medium liner configuration
3 axle carrier
3 axle walking beam
42” Rear swing overflow chute, self-driving head pulley
42” Rear discharge conveyor, self-driving head pulley
Hydraulic adjustment
Hydraulic relief
Specifications:
| Head Diameter | 44" |
| Hydraulic Capacity | 26.4 Gallons |
| Lube Oil Capacity | 73 Gallons |
| Feed Conveyor | 36” x 40’ |
| Feed Conveyor Height | 6’ - 6” |
| Rear Discharge Conveyor | 42” x 48’ |
| Conveyor Discharge Height | 14’ - 11” |
| Crusher | 300 |
| Hydraulic Power Unit | 10 |
| Lube Unit | 10 |
| Air Oil Cooler | 105 |
| Heaters | 2x 4kW |
| Feed Conveyor | 15 |
| Discharge Conveyor | 20 |
Additional Options:
- Overflow Chute
- NEMA-12 Motor Control Center
- Four (4) Leveling Hydraulic Jacks – 70k lbs
- Six (6) Run-On Jack Legs
LC400IOW In-Out Portable Cone Plant
The Lippmann LC400IOW plant delivers substantial production to keep up with a large primary crushers. This one piece move includes a large bushing type 400Hp cone crusher with a fully automated control system. This plant features a feed conveyor and a side discharge which will be ideal for being fed from a screen plant and in closed circuit operations.
- 400HP Cone Crusher
- Bushing type cone with superior speed throw and cavity design
- Multiple liner configurations
- 3 axle carrier
- On plant crusher feed conveyor
- On plant folding side discharge conveyor
- Overflow chute
- Cone hydraulic adjust and relief
Specifications:
| Head Diameter | 52” |
| Hydraulic Capacity | 39.6 Gallons |
| Lube Oil Capacity | 132 Gallons |
| Feed Conveyor | 42” x 33’ |
| Feed Conveyor Height | 5’ - 1” |
| Side Discharge Conveyor | 42” x 19’ |
| Conveyor Discharge Height | 5’ - 6’ |
| Crusher | 400 |
| Hydraulic Power Unit | 10 |
| Lube Unit | 10 |
| Air Oil Cooler | 7.5 |
| Heaters | 3x 4kW |
| Feed Conveyor | 20 |
| Discharge Conveyor | 10 |
Additional Options:
- Overflow Chute
- NEMA-12 Motor Control Center
- Four (4) Leveling Hydraulic Jacks – 70k lbs
- Six (6) Run-On Jack Legs
Impact Crushers
Terex 1316
With their large feed openings, heavy duty aprons and rugged rotors, the IP1316 series crushers are designed to handle big feed sizes and high capacity crushing.
The patented wedge bar system is just one of many features that ensure reliable operation. Maintenance is fast and easy, which helps minimize downtime.
Terex 1516
With its large feed opening, large capacity and high reduction ratio, the Cedarapids 1516 horizontal shaft impactor delivers extraordinary crushing power, plus high production volume.
Rapid blowbar and quick change breaker plates allow for better control of product size.
Three inspection doors and a removable top facilitate easy breaker plate access. The patented quick turn wedge system permits fast and simple bar rotation and bar replacement.

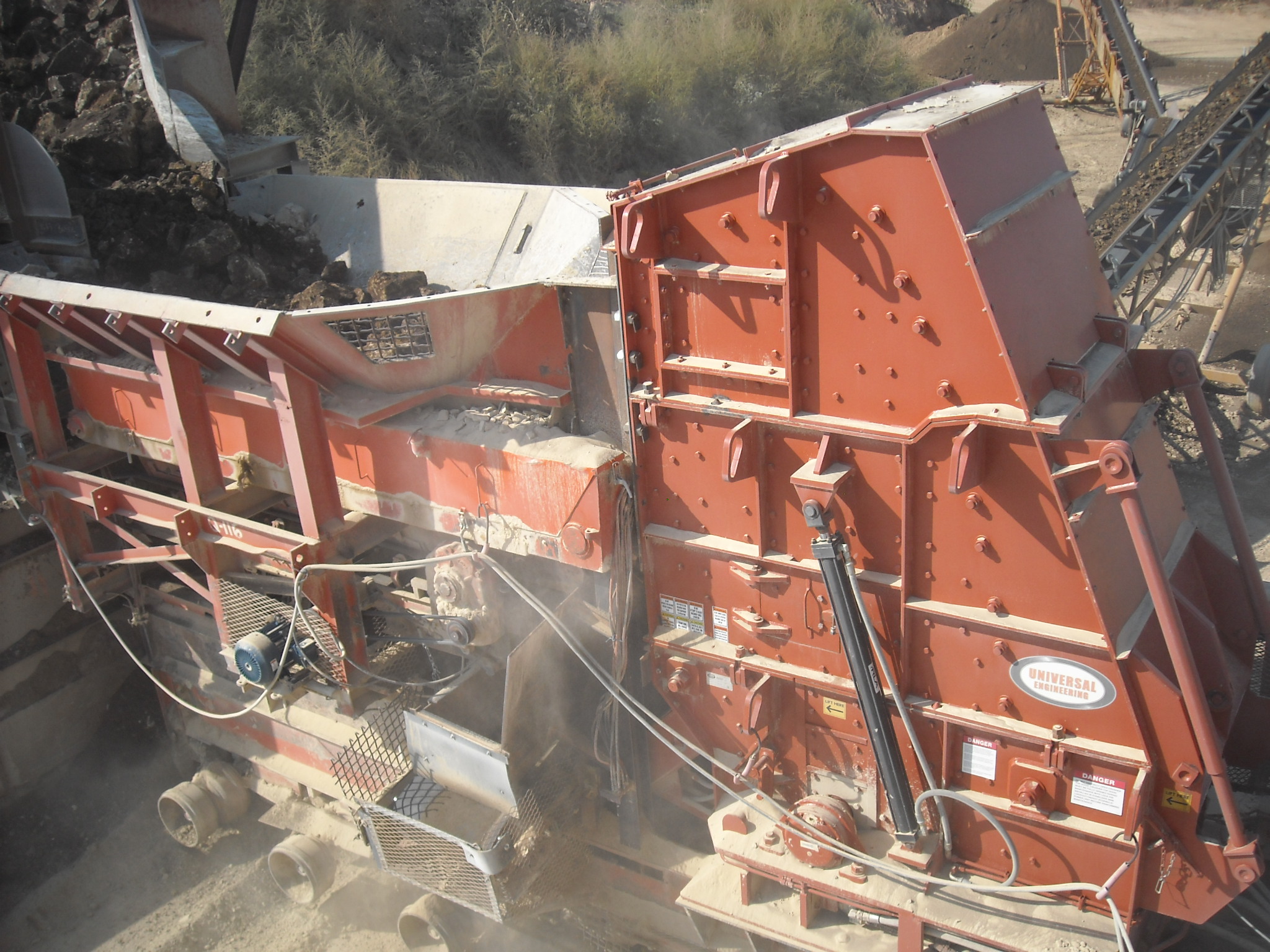

McLanahan Universal MaxCap Primary Impact Crusher
The Universal MaxCap Impact Crusher combines the best features of the Andreas and New Holland styles for an efficient primary impactor that delivers maximum capacity and a high-quality, cubical product at a lower cost per ton. Designed for mining and aggregate operations, it provides reliable breaking performance and simplified maintenance.
Features:
Heavy-duty fabricated steel housing with upper and lower sections for easy maintenance access
Hydraulic hood and curtain adjustment with auto-reset for reduced downtime
Large expansion crushing chamber and interchangeable manganese wear plates
Solid steel rotor with reversible, one-piece manganese hammers
Optional third stage reduction for improved gradation control

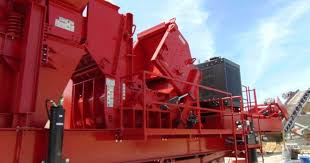

McLanahan Universal VersaCap Impact Crusher
The Universal VersaCap Impact Crusher is a highly versatile impactor designed for portability, high productivity, and simplified maintenance. Engineered for aggregate, mining, and recycling applications, it delivers efficient reduction with long wear life and easy access for service.
Features:
Low-profile, heavy reinforced housing ideal for portable or stationary setups
Large access doors on sides, back, and top for full inspection access
Reversible manganese primary curtain and fully lined secondary curtain for extended wear life
Optional third curtain for additional sizing control and hydraulic shim adjustment
Wrench-free curtain adjustment and optional “Unimation” PLC automation for precise control

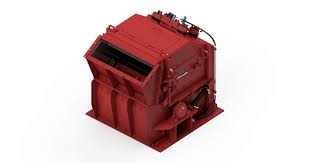

McLanahan Universal NGS Impact Crusher
The Universal NGS (Next Generation Secondary) Impact Crusher is engineered to deliver a cubical product with lower operating costs. Designed for secondary applications, it features simplified maintenance, improved safety, and field-modifiable options to adapt to changing material requirements.
Features:
Hydraulic-shim adjustment on each impact curtain for quick, precise setting changes
Two independent gravity-hung curtains that maintain gap settings during material surges
Optional third curtain kit for enhanced top-size control
Heavy-duty chrome-alloy steel liners and interchangeable abrasion-resistant components
Large access doors for safe and efficient inspection and maintenance
Disc-style rotor with top-loading “S” hammers for consistent reduction and longer wear life
Lippmann 4248LP
Applications: Primary, Secondary
Industries: Aggregate, Mining, Recycling
Mounting: Wheeled Plant, Tracked Plant, Skid, Stationary, Bare
Proven in a variety of applications and materials, Lippmann impact crushers stand up to the most demanding aggregate, mining and recycling operations. Crush a wide range of materials like limestone, dolomite, gravel, basalt, copper reverts, concrete, and asphalt without losing strength or efficiency.
Whether portable, stationary, or skid-mounted, these rugged impact crushers provide consistently high production at an incredible value. For optimal throughput, impact crushers are equipped with Lippmann grizzly feeders and engineered for your most critical crushing scenarios.
Features:
- Andreas-type impact crusher design
- Produces highly cubical product
- High ratio of reduction
- Hammers have four crushing positions to maintain a more constant gradation and greater top-size control
- No weld buildup required on wear surfaces
- Less capital outlay than competitive crushers
- High degree of product size control
- Wear components have long life due to advanced metallurgy
- One gravity and one spring-loaded curtain with optional third curtain allow easy adjustment from exterior of crusher • 3- or 4-bar option
- Maintenance through inspection doors or by hydraulically opened hood (electric/hydraulic power unit is standard)
- Optional feed chute designs allow impactor to be fed from three sides with a stacking conveyor
- Skid-type units offering low-profile fold-up legs and ample platform area are available if looking to avoid high permanent structure costs and for easy relocation • Ideal for portable mounting
Jaw Crushers
Terex JW42
The JW Series is engineered for portability and ease of use. The rugged design delivers the reliability you can expect from Cedarapids.
They feature a hydraulically actuated wedge system that allows variable closed side-setting adjustments to be made quickly and easily.
Designed to suit track, mobile or static plant installations, these durable crushers utilize heavy duty components for optimum operation and long life.
Specifications:
| Weight | Feed Opening | CSS Range | Capacity | Motor Size |
|---|---|---|---|---|
| 39,100 lbs / 17,740 kg | 30x42" / 760x1070 mm | 3-8" / 75-210 mm | 155-480 tph / 135-430 mtph | 150 hp / 110 kW |
Terex JW55
The JW Series is engineered for portability and ease of use. The rugged design delivers the reliability you can expect from Cedarapids.
They feature a hydraulically actuated wedge system that allows variable closed side-setting adjustments to be made quickly and easily.
Designed to suit track, mobile or static plant installations, these durable crushers utilize heavy duty components for optimum operation and long life.
Specifications:
| Weight | Feed Opening | CSS Range | Capacity | Motor Size |
|---|---|---|---|---|
| 57,860 lbs / 26,250 kg | 32x55" / 820x1400 mm | 3.5-9" / 85-225 mm | 255-760 tph / 230-680 mtph | 200 hp / 150 kW |

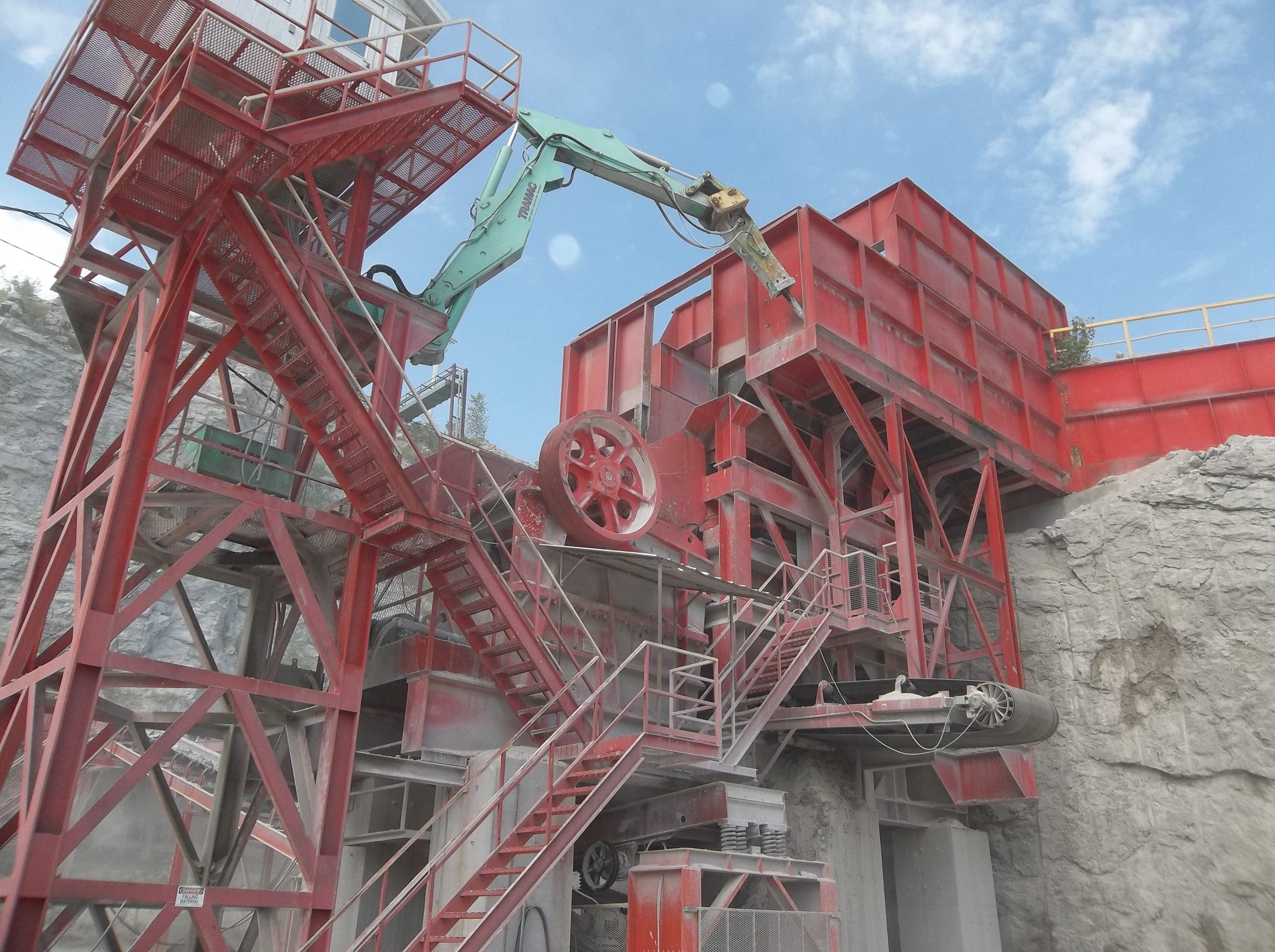

Universal Jaw Crusher
The Universal Jaw Crusher delivers efficient, cost-effective primary crushing for a wide range of applications. Its deep crushing chamber and compressive stroke produce more spec material at a lower cost per ton, with continuous crushing action and reduced wear.
Features:
- Deep crushing chamber
- Compressive stroke design
- Heavy-duty construction
- Reduced wear components
- Easy maintenance access
Lippmann 4248
Features:
- Heat treated shafts
- Curved jaw dies
- Protected pitman hub
- One or two-piece cheek pieces
- Positive oil-level gauges
The Lippmann 4248 jaw crusher is built to last with heat-treated stress points. Its elongated jaw and curved dies allow for maximum crushing area that won’t choke up. This crusher is designed for its strength, which means less downtime and maintenance.
